DET lifePo4 3.2V Battery Cells Featured Image
  • DET lifePo4 3.2V Battery Cells
  • DET lifePo4 3.2V Battery Cells
  • DET lifePo4 3.2V Battery Cells
  • DET lifePo4 3.2V Battery Cells

Short Description:

The energy density of det LiFePO4 is high, and the energy density of square aluminum shell LiFePO4 battery is 180wh / kg The battery has good safety performance, the structure of the battery will not change during the charging and discharging process, and it will not burn and explode.

Moreover, it is still very safe even under special conditions such as short circuit, overcharge, extrusion and needling, with long cycle life. The 1C cycle life of LiFePO4 battery is generally more than 3500 times,


Product Detail

TECHNICAL DATA

Download

Construction:

u Stable voltage platform of 3.2V～3.3V;

u With higher energy density, specify capacity density, and volume capacity density;

u With excellent and long time cycle life;

u With excellent resistant performance to overcharge and over-discharge;

u Has no mermory effect;

u Self-discharge rate is less than 3% per month;

Environment-friendlly,maintenane-free

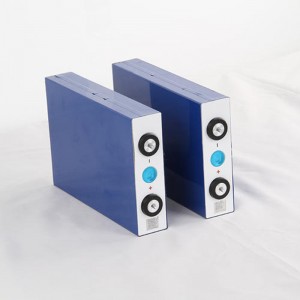

batts cells1
2

Applications:

• Uninterrupted power supplies
• Security & fire alarm systems
• Laboratory & test equipment
• Monitoring equipment
• Telecom equipment
• Emergency lighting		 • Power tools
• Medical equipment
• Consumer electronics
• Portable equipment
• Toys and hobbies
• Marine instruments
  • Previous:
  • Next:
    • Series Model Case Capacity
    (Ah)    		 Thickness
    (mm)    		 Width
    (mm)    		 Heiht
    (mm)    		 Total heiht(mm) Weight
    (kg)
    High Power DELFP15-P A3003 15 27 70 145 155 0.52
    DELFP80-P AL3003 80 60 150 175 200 2.7
    DELFP110-P AL3003 110 60 150 225 250 4.5
    High Temperature DELFP50-H AL3003 50 36 130 180 195 1.6
    Capacity DELFP5-C AL3003 5 13 65 105 108 0.18
    DELFP8-C AL3003 8 16 65 130 133 0.25
    DELFP10-C AL3003 10 27 70 130 133 0.3
    DELFP15-C AL3003 15 27 70 130 140 0.5
    DELFP16-C AL3003 16 34 70 145 155 0.54
    DELFP20-C AL3003 20 8 150 160 177 0.7
    DELFP20-C AL Laminate 20 36 130 235 255 0.58
    DELFP30-C AL3003 30 36 115 120 135 1.05
    DELFP40-C AL3003 40 36 130 150 165 1.4
    DELFP40-C1 AL3003 40 36 115 155 170 1.1
    DELFP50-C AL3003 50 36 135 180 195 1.6
    DELFP50-C1 AL3003 50 36 150 185 200 1.4
    DELFP55-C AL3003 55 29 135 215 230 1.8
    DELFP60-C1 AL3003 60 60 150 140 165 1.8
    DELFP60-C2 AL3003 60 36 150 200 215 1.8
    DELFP80-C AL3003 80 60 150 163 168 2.6
    DELFP90-C AL3003 90 60 150 175 200 2.9
    DELFP100-C AL3003 100 60 150 190 215 3.1
    DELFP150-C AL3003 150 60 150 256 281 4.4
    DELFP160-C AL3003 160 60 150 260 265 4.6
    DELMP6-C AL3003 6 13 65 85 88 0.175
    Solar DELMP50-S AL3003 50 36 130 180 195 1.4
