Short Description:

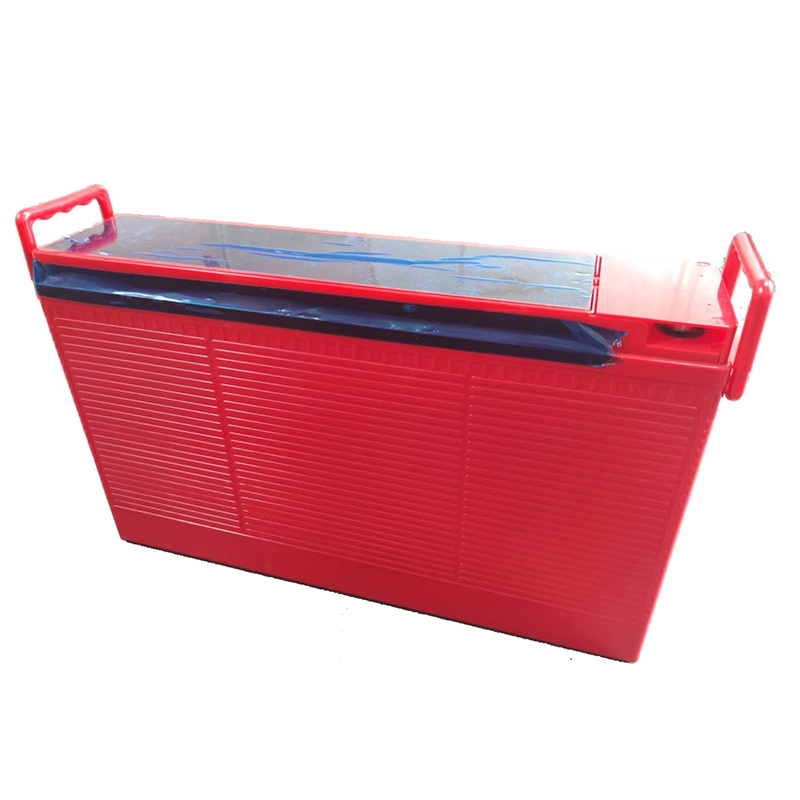

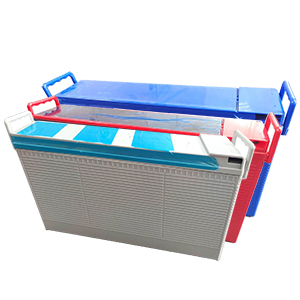

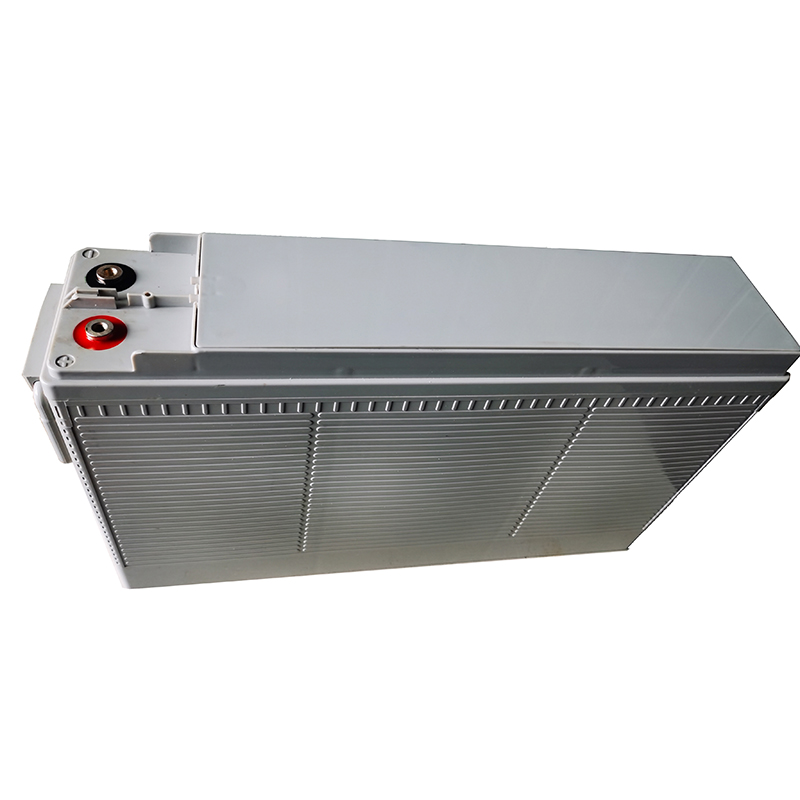

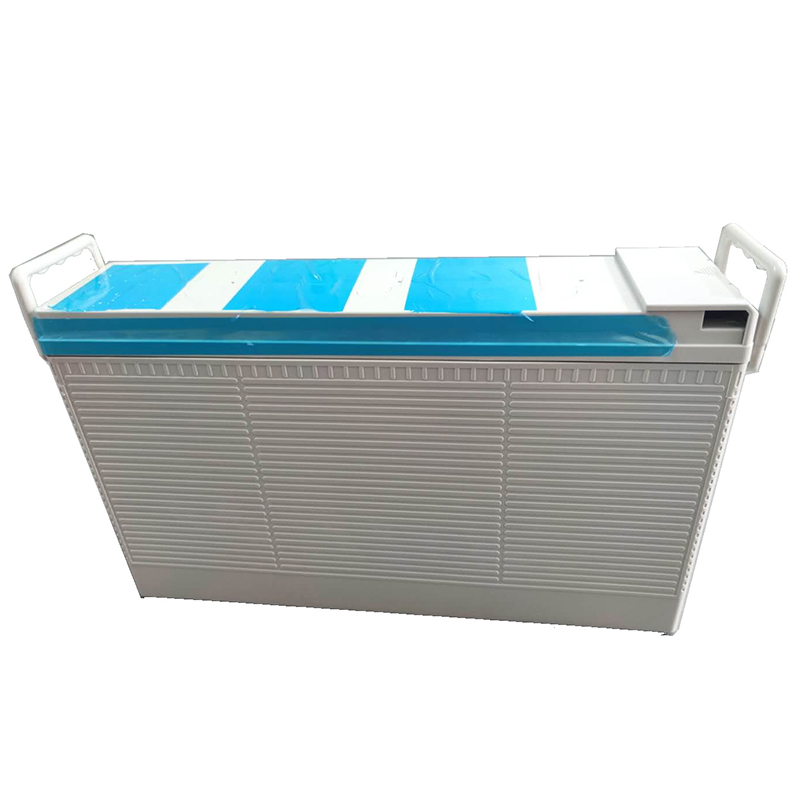

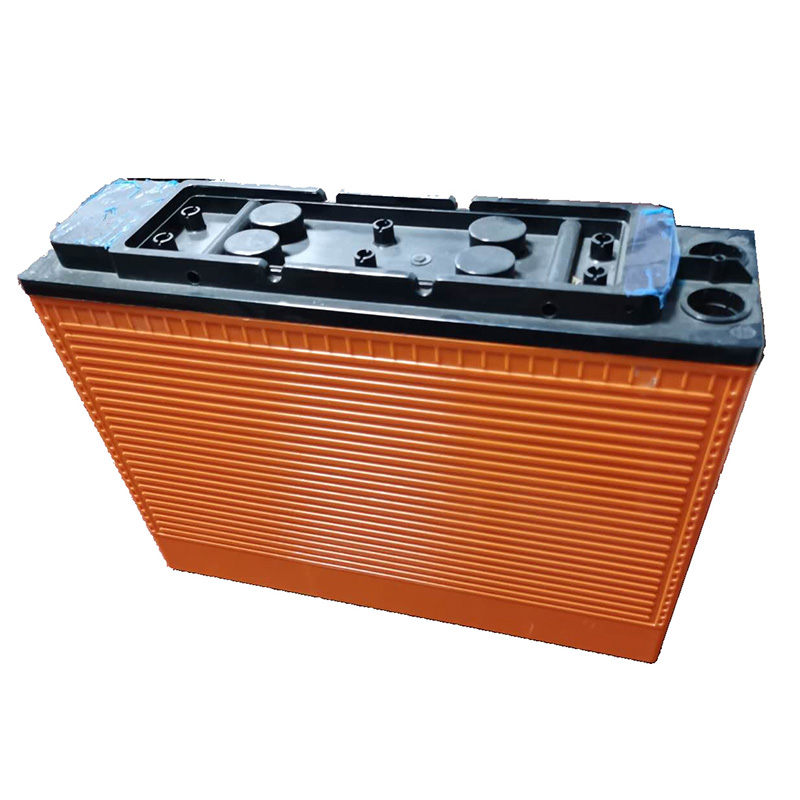

DET Front Terminal battery

The lead-acid battery with DET front terminal is specially designed for telecommunication applications, with a floating charge life of 12 years. Thickened 3D curved plate, special paste formula and the latest AGM separator technology are adopted.

Stable performance, good consistency, suitable for outdoor telecommunications occasions and other backup power applications.

The long and narrow structure and front terminal design make it easy to install and maintain, and the size is perfectly compatible with 19 ′ / 23 ′ standard cabinet / rack.


  • Brand: DET and OEM
  • Certificates: ISO / CE/ IEC
  • Product Detail

    TECHNICAL DATA

    Download

    Technical features:

    Thick plate, positive plate: 4.2mm thick 3D curved grid, high tin alloy

    Negative plate: balanced lead calcium alloy negative plate

    Diaphragm: enhanced AGM

    Electrolyte: high purity dilute sulfuric acid

    Gas central ventilation system;

    Rope handle for easy handling and installation;

    Easy to install and firm copper terminal, providing high conductivity and easy connection;

    The front-end access terminal is convenient for quick connection.

    Wide working temperature range;

    3

    Applications:

    • Uninterrupted power supplies
    • Security & fire alarm systems
    • Laboratory & test equipment
    • Monitoring equipment
    • Telecom equipment
    • Emergency lighting
    • Power tools
    • Medical equipment
    • Consumer electronics
    • Portable equipment
    • Toys and hobbies
    • Marine instruments

  • Previous:
  • Next:

  • Model voltage capacity weight Size(mm)  material  terminal Type initial maximumCharging current Recommended charging interval Used Temperature (° C) “ design Life
    FT6-200 6V 200Ah 34KG 363*125*250*250mm ABS T19 0.25CA 6 month 15~25°C 12years
    FT12-40 12V 42Ah 15.2KG 277*106*222*222mm ABS T19 0.25CA 6 month 15~25°C 12years
    FT12-55 12V 58Ah 18.0KG 277*106*222*222mm ABS T19 0.25CA 6 month 15~25°C 12years
    FT12-70 12V 73Ah 25.0KG 564*114*187*187mm ABS T19 0.25CA 6 month 15~25°C 12years
    FT12-75 12V 78Ah 26.0KG 564*114*187*187mm ABS T19 0.25CA 6 month 15~25°C 12years
    FT12-80 12V 82Ah 28.0KG 562*115*187*194mm ABS T19 0.25CA 6 month 15~25°C 12years
    FT12-90 12V 93Ah 31.0KG 508*110*239*239mm ABS T19 0.25CA 6 month 15~25°C 12years
    FT12-100 12V 103Ah 35.6KG 508*110*239*239mm ABS T19 0.25CA 6 month 15~25°C 12years
    FT12-100 12V 95Ah 30.0KG 507*110*238*238mm ABS T19 0.25CA 6 month 15~25°C 12years
    FT12-110 12V 110Ah 31.0KG 410*110*287*287mm ABS T19 0.25CA 6 month 15~25°C 12years
    FT12-120 12V 110Ah 31.0KG 551*110*287*287mm ABS T19 0.25CA 6 month 15~25°C 12years
    FT12-150 12V 165Ah 47.0KG 560*110*280*280mm ABS T19 0.25CA 6 month 15~25°C 12years
    FT12-180 12V 180Ah 53.5KG 546*124*315*315mm ABS T19 0.25CA 6 month 15~25°C 12years
    FT12-200 12V 200Ah 63KG 522*238*218*221mm ABS T19 0.25CA 6 month 15~25°C 12years
